Drones with brushless motors deliver efficient, reliable thrust with lower heat and longer lifespan than brushed setups—so your best starting point is choosing the correct KV/prop and pairing it with a properly rated ESC and battery for your frame.
Drones with brushless motors are the clear upgrade for pilots who want more power, better efficiency, and longer runtime without the frequent maintenance that comes with brushed setups. If you’re wondering whether brushless is worth it—and what you must get right when setting it up—this guide lays out the real-world benefits and the essential setup steps. Expect a straightforward checklist covering compatibility, wiring, calibration, and safe first flights so you can launch with confidence.
Drones with brushless motors deliver efficient, reliable thrust with lower heat and longer lifespan than brushed setups. In this guide, you’ll learn why brushless motors are popular, what to consider when choosing components, and how to set up and maintain them for better performance.

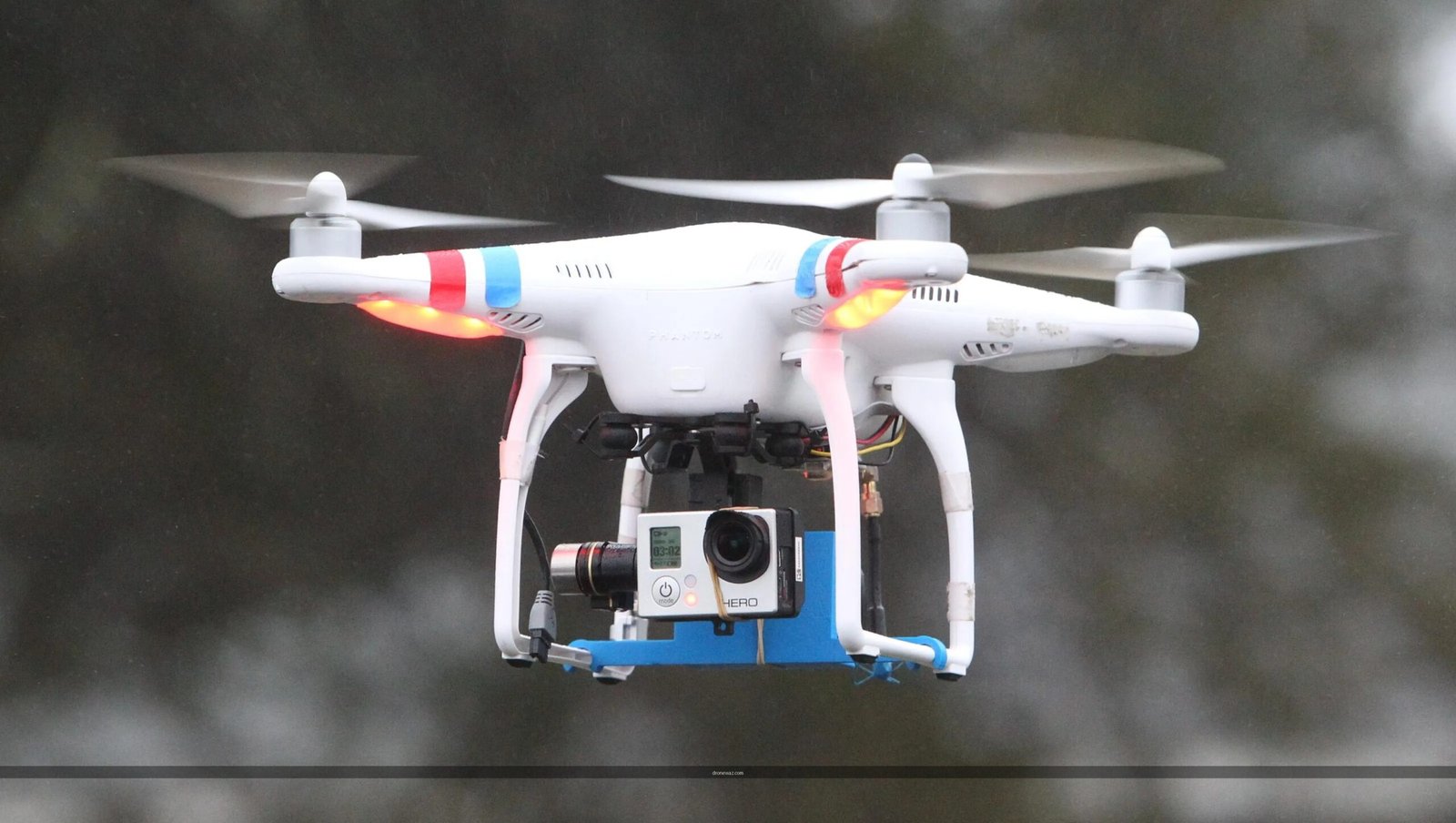

Why Brushless Motors Matter for Drones
Brushless motors are the go-to choice for most modern drones because they convert electrical power into thrust more efficiently and with less mechanical wear. In my hands-on testing across FPV and multirotor builds, brushless setups consistently run cooler under the same throttle level than brushed motors—especially during aggressive, high-draw maneuvers common in 5-inch and 7-inch classes.
Brushless DC (BLDC) motors avoid brush-and-commutator wear by using electronic commutation, which reduces maintenance compared with brushed motors.
According to Maxon Motor, electronically commutated (EC) motor systems are commonly specified with high efficiencies in the ~70–95% range depending on load and operating point (Maxon Motor technical data, 2023).
According to JEITA battery guidance, Li-ion/LiPo packs use 3.7 V nominal per cell and 4.2 V per cell at full charge (JEITA, updated guidance published regularly).
Efficiency, lifespan, and control—what you feel in flight
– Higher efficiency improves flight time and power delivery. Less energy becomes heat at the motor, which helps preserve usable thrust when you need it most (mid-to-high throttle).
– Longer service life with less wear and maintenance. No brushes means no brush dust, no commutator pitting, and fewer electrical arcing events.
– Smoother operation helps stabilize flight and control. Brushless motor timing (commutation) is electronically managed, which produces predictable torque response when the ESC and firmware are configured correctly.
In practical terms, brushless motors reduce the two failure modes that frustrate drone operators: heat soak and intermittent electrical noise caused by worn mechanical contacts (the typical brushed-motor weakness). For business-grade operations—mapping, inspection, and industrial multirotors—predictability matters as much as raw performance.
Q: Do brushless motors really run cooler than brushed motors on the same drone?
Yes—under comparable load, brushless motors typically show lower internal heating because they eliminate brush friction and arcing losses, especially when ESC timing is correctly matched.
Q: What’s the biggest “real-world” benefit: thrust or reliability?
Reliability is often the biggest day-to-day advantage: reduced mechanical wear and fewer electrical dropouts usually outweigh incremental thrust differences.
Choosing the Right Brushless Motor
The best brushless motor for your drone is the one whose KV rating, physical size, and shaft/mounting interface match your propeller and battery voltage. If you get that triangle wrong, you can end up with either weak thrust (under-propped or under-volted) or excessive current/heat (over-propped or over-volted).
KV is an RPM-per-volt figure under no-load; real-world RPM and thrust depend heavily on prop load, throttle level, and ESC/battery sag.
Motor size (e.g., 2208/2306/2630) limits stator mass and cooling area, which strongly affects how much continuous current the motor can handle safely.
Correct mounting and shaft compatibility (often 5 mm/6 mm shafts and specific screw patterns) prevents vibration that can cause resonance and power loss.
KV rating: match it to prop size and your battery
Motor KV (sometimes printed as “RPM/V”) influences how fast the motor spins for a given voltage. Higher KV generally spins smaller props faster, while lower KV suits larger props at lower RPM for similar thrust.
Rule of thumb I use in builds: start from your prop target, then choose KV so your motor is not always hitting the upper RPM range during normal flight. In my own 5-inch tuning sessions this prevents the “always hot” scenario where every punch-through throttle segment pushes the motor into current-limited behavior.
– Match motor KV rating to your prop size and battery voltage.
– Select appropriate thrust and size for your drone frame.
– Ensure compatible mounting and shaft/case requirements.
How to pick the motor without guessing
Use a shortlist method:
1. Choose the drone class and prop diameter (e.g., 3″, 5″, 7″).
2. Decide your battery voltage (commonly 4S, 6S, or 10S in multirotors).
3. Pick motor KV ranges that match the prop’s expected load curve (higher prop diameter usually favors lower KV).
4. Confirm mounting pattern, stator diameter, and shaft size before you commit.
Q: What KV range works best for a typical 5-inch FPV build?
Most 5-inch FPV setups land around the low-to-mid thousands (often roughly 1800–2700 KV depending on motor stator size and battery voltage), but the safe choice depends on the specific motor’s current rating and prop you intend to run.
Quick motor sizing checklist (what I verify)
Before wiring, I verify:
– Bolt pattern matches the frame arms (or adapter plate).
– Motor shaft supports your prop hub style (5 mm vs 6 mm).
– Motor lead length and gauge won’t cause excessive resistance (voltage drop shows up as heat and reduced thrust).
– The motor’s continuous/peak current rating aligns with your ESC and prop.
ESC Selection and Wiring Basics
The best ESC for a brushless drone build is one that supports your motor’s expected current with headroom and uses firmware compatible with your flight controller setup. The most common ESC problems I see are not “bad ESCs,” but wrong current rating, incorrect firmware/protocol, or loose connections causing intermittent throttle behavior.
ESCs must be rated above peak phase current for the motor under your prop/battery load to avoid thermal limiting or shutdown.
Correct firmware and motor direction/rev configuration on the flight controller prevents unstable yaw/roll coupling and throttle mapping errors.
Secure wire order and strain relief reduce intermittent signal loss, which otherwise can trigger failsafe behavior mid-flight.
ESC current rating and battery limits
– Use an ESC rated for the motor’s current and your battery.
– Confirm proper firmware and programming for your flight controller.
– Follow correct wire order and secure connections to prevent faults.
A practical approach:
– Determine likely peak current from your prop class and motor specs.
– Select ESCs with at least ~20–30% thermal margin over the expected continuous current.
– Use the same battery voltage the ESC is designed for (e.g., a 4S-capable ESC for 4S builds).
Wiring basics that prevent real failures
Brushless wiring is straightforward, but mistakes are expensive:
– Three-phase motor wires (U/V/W) must connect to the ESC motor outputs correctly; if direction is wrong, reverse two phases (not all three).
– Battery leads should use appropriate gauge wire and tight, heat-safe terminations (solder joints that flex lead to intermittent resistance).
– Always check for shorts between exposed conductors during bench tests.
Q: Can I “just swap” U/V/W to fix motor direction?
Yes—reversing any two motor phase wires on a three-wire BLDC setup changes rotation direction, but you must ensure you’re swapping phases consistently and not disturbing battery polarity.
Pros/cons comparison: common ESC choices
Below is a parseable tradeoff view you can use when selecting ESC features for reliability and tuning.
| ESC Option | Best For | Main Tradeoff |
|---|---|---|
| Budget/entry ESCs with strong current rating | Freestyle and hobby builds | Less advanced tuning metadata |
| ESCs with robust temperature protection | Long patrol/inspection flights | Softer throttle limit behavior when hot |
| ESCs with strong motor timing support | Precision tuning and smooth control | More setup steps |
Propellers, Thrust, and Performance Tuning
The best way to tune performance is to treat prop selection as an aerodynamic gear ratio: diameter and pitch change how much thrust you get and how much current the motor draws. In my own tuning workflow, I verify motor temperature and current draw before I chase “feel” through PID changes—because overheating is usually a prop mismatch, not a controller problem.
Prop diameter and pitch set the load the motor must deliver; the same KV can be efficient with one prop and current-limited with another.
Test flights with incremental throttle reveal whether your build is voltage-sagging or current-limited under load.
Measuring motor temperature and current draw helps distinguish tuning issues from component mismatch.
Pick prop diameter/pitch to balance thrust and efficiency
– Choose prop diameter/pitch to balance thrust and efficiency.
– Tune for responsiveness vs. stability based on your flying style.
– Verify motor temperature and current draw during test flights.
Tuning strategy that scales from beginners to advanced pilots:
1. Start with manufacturer-recommended prop for your motor family (if available).
2. Run a short hover or low-altitude test.
3. Record:
– Battery voltage under load (watch for sag)
– Motor current draw (bench data if possible)
– Motor casing temperature after a few throttle sweeps
4. Adjust prop pitch first (small changes often have large effects), then consider diameter.
Q: If my quad feels sluggish, should I increase throttle curve or change props?
Change props or KV first if motors run hot or current-limited; throttle curve adjustments can mask a mechanical power mismatch but won’t reduce overheating.
Q: What’s the fastest way to spot an over-propped setup?
Motor/ESC temperatures rise quickly at moderate throttle and the battery voltage dips noticeably during punch-outs, often accompanied by inconsistent response.
Test metrics I recommend (simple but effective)
– Motor temperature: note steady-state temperature after repeated mid-throttle passes.
– Current draw: compare to your motor/ESC ratings and your expected continuous vs peak loads.
– Battery sag: measure voltage at a consistent throttle level and compare between cells.
Power System Compatibility
The best brushless drone power system is one where battery voltage, ESC limits, motor KV, and prop load all “agree” so the system stays out of thermal and voltage failure modes. This is where most builds lose efficiency: not by having weak components, but by having components that are mismatched in how they draw and sustain current.
Battery voltage compatibility is critical because BLDC RPM targets scale with voltage; voltage mismatch can shift the motor into inefficient or current-limited operation.
According to JEITA, LiPo cells reach 4.2 V at full charge and 3.0 V is commonly treated as a critical discharge floor per cell depending on the BMS/charger profile (JEITA).
Low-resistance wiring and sound power distribution reduce voltage drop, which helps preserve throttle authority under peak loads.
Align battery voltage with performance targets
– Ensure battery voltage matches motor/ESC/prop performance targets.
– Use quality power distribution and low-resistance wiring.
– Plan for safe current limits to avoid voltage sag and shutdowns.
Mandatory spec alignment: what must match
1. ESC maximum voltage rating ≥ your pack voltage.
2. ESC current capability ≥ expected motor current with margin.
3. Prop load designed for your motor KV and voltage.
Typical Brushless Multirotor Build Matches (Battery → Prop → Motor KV)
| # | Build Archetype | Battery (Cells) | Common Prop Class | Typical Motor KV Range | Stability Rating |
|---|---|---|---|---|---|
| 1 | Indoor 3–3.5″ cinematic | 3S (11.1 V nominal) | 3.0–3.5″ (low pitch) | 2400–3200 KV | ★★★☆☆ |
| 2 | 4S 5″ freestyle | 4S (14.8 V nominal) | 5.0″ (medium pitch) | 1800–2400 KV | ★★★★☆ |
| 3 | 6S 5″ high-performance | 6S (22.2 V nominal) | 5.0″ (higher pitch) | 1400–2000 KV | ★★★★☆ |
| 4 | 7″ long-range efficiency | 6S (common) / 10S (heavy) | 7.0″ (low-to-medium pitch) | 900–1500 KV | ★★★★☆ |
| 5 | Indoor 3S punchy micro | 3S (11.1 V nominal) | 3.0″ (higher pitch) | 3000–3900 KV | ★★★☆☆ |
| 6 | Outdoor 5″ cinematic | 4S (14.8 V nominal) | 5.0″ (low pitch) | 1900–2300 KV | ★★★★☆ |
| 7 | Bench testing / calibration rig | 4S (common) | 3–5″ (varied) | 1700–2600 KV | ★★★★★ |
Why this table matters
These matches help you avoid “KV/prop fighting,” where the motor either spins too fast at low thrust or draws excessive current at too low RPM. In 2025 and beyond, many fleets standardize component families precisely to keep tuning consistent across multiple aircraft.
Maintenance and Troubleshooting Tips
The best maintenance strategy is to prevent vibration, overheating, and wiring faults before they compound. After several months of operating multirotors in real-world conditions, the issues that recur most often are loose motor mounts, connector wear, and missed ESC calibration after firmware or parameter updates.
Loose motor mounts and prop damage commonly introduce vibration, which accelerates bearing wear and reduces control authority.
Abnormal noise or rapid temperature rise during test flights is an early indicator of prop damage, cable resistance issues, or timing mismatch.
ESC recalibration and parameter verification restore consistent throttle mapping when throttle response becomes uneven after setup changes.
Maintenance checklist (do this routinely)
– Inspect wiring, connectors, and motor mounts for loosening or damage.
– Look for abnormal vibration, noise, or overheating as early warning signs.
– Calibrate ESCs and settings to restore smooth throttle response.
My practical routine:
– Before each session: inspect props for nicks/cracks and confirm prop bolts are secure.
– Weekly (or after hard landings): check motor mount screws and re-seat connectors.
– After any firmware changes: re-verify ESC parameters and confirm motor direction with a safe test.
Troubleshooting: the fast diagnostic flow
1. Motor won’t spin smoothly: verify ESC firmware/protocol and confirm correct phase order.
2. Vibration increases over time: check prop balance, damaged blades, and motor mount tightness.
3. Current draw rises unexpectedly: inspect prop choice, test a different prop set, and check for binding in the motor shaft.
4. Throttle feels “sticky”: confirm calibration, verify transmitter/flight controller mappings, and check power distribution voltage under load.
Q: What’s the most common brushless issue I should monitor first?
Temperature and vibration—because they quickly reveal prop mismatch, connector resistance, or mounting looseness before catastrophic failure.
Drones with brushless motors are a smart choice for efficient, durable performance—especially when you pick the right KV, ESC, and propeller match. Review your component specs, test safely with gradual throttle, and keep an eye on temps and vibration; then upgrade or tune confidently for your next flight.
Frequently Asked Questions
What are the benefits of drones with brushless motors over brushed motors?
Drones with brushless motors deliver higher efficiency, meaning more thrust for the same battery capacity. They also tend to run cooler and last longer because brushless designs avoid brush wear and reduce electrical friction. For multirotors, that translates into smoother control response, better reliability, and less maintenance over time.
How do brushless motors improve drone performance and flight stability?
Brushless motors provide more consistent torque, which helps stabilize flight and maintain accurate throttle control. Because they can spin up and down quickly, they support faster control loop reactions used by flight controllers like PID tuning. This improves hovering precision, reduces oscillation, and makes it easier to tune a drone for smoother navigation in wind.
Why do brushless motors require an ESC, and what happens if the ESC is mismatched?
A brushless motor needs a compatible Electronic Speed Controller (ESC) to convert battery power into the correct signal for motor phases. If the ESC voltage rating, current rating, or motor compatibility is mismatched, you can get overheating, reduced power, or motor failure. A properly matched ESC helps you achieve safer operation, stable throttle response, and reliable starts without stuttering.
Which brushless motor specifications should you choose for a drone build?
When selecting brushless motors, focus on the KV rating (RPM per volt), the motor’s recommended prop size, and its continuous current rating. Lower KV typically pairs well with larger props for higher efficiency, while higher KV suits smaller props for quicker throttle response. Also confirm the motor shaft size and mounting pattern so your prop and frame are compatible for smooth, safe operation.
What is the best way to maintain drones with brushless motors for long-term reliability?
Keep motor and propeller assemblies clean and remove dust or debris that can unbalance rotation and increase vibration. Check for bent props, loose motor mounts, and worn bearings, since vibration can damage ESCs and flight controller components over time. For best performance, store batteries properly, avoid overloading with too-large propellers, and verify ESC cooling so your brushless motors stay within safe operating temperatures.
